Chat with AI in RStudio

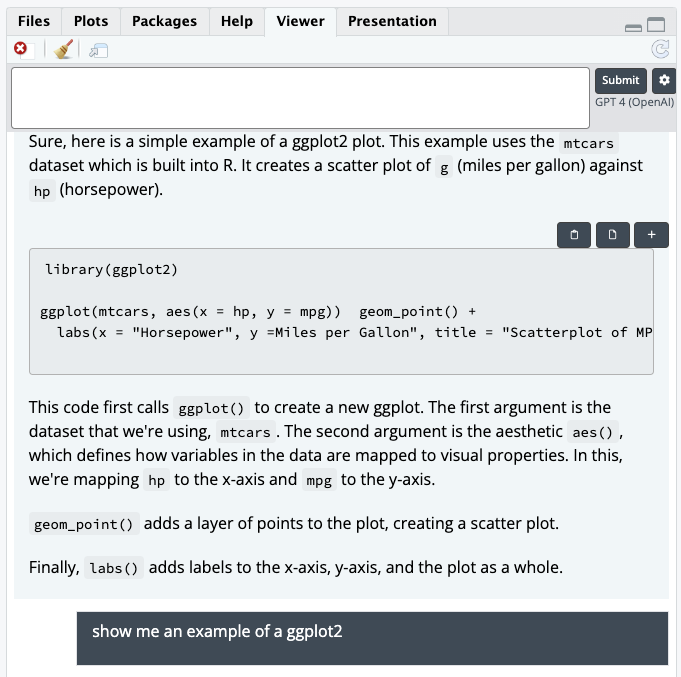

chattr is a package that enables interaction with Large Language Models (LLMs), such as GitHub Copilot Chat, and OpenAI’s GPT 3.5 and 4. The main vehicle is a Shiny app that runs inside the RStudio IDE. Here is an example of what it looks like running inside the Viewer pane:

chattr’s Shiny app — `chattr`’s Shiny app

Even though this article highlights chattr’s integration with the RStudio IDE, it is worth mentioning that it works outside RStudio, for example the terminal.

Getting started#

To get started, install the package from CRAN, and then call the Shiny app using the chattr_app() function:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


# Install from CRAN
install.packages("chattr")

# Run the app
chattr::chattr_app()

#> ── chattr - Available models
#> Select the number of the model you would like to use:
#>
#> 1: GitHub - Copilot Chat -  (copilot)
#>
#> 2: OpenAI - Chat Completions - gpt-3.5-turbo (gpt35)
#>
#> 3: OpenAI - Chat Completions - gpt-4 (gpt4)
#>
#> 4: LlamaGPT - ~/ggml-gpt4all-j-v1.3-groovy.bin (llamagpt)
#>
#>
#> Selection:
>

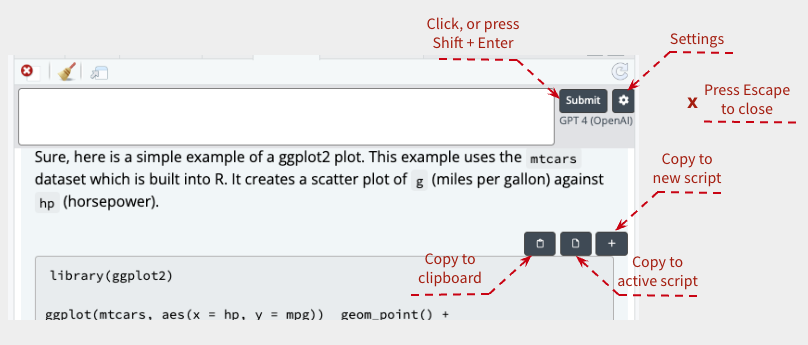

After you select the model you wish to interact with, the app will open. The following screenshot provides an overview of the different buttons and keyboard shortcuts you can use with the app:

You can start writing your requests in the main text box at the top left of the app. Then submit your question by either clicking on the ‘Submit’ button, or by pressing Shift+Enter.

chattr parses the output of the LLM, and displays the code inside chunks. It also places three buttons at the top of each chunk. One to copy the code to the clipboard, the other to copy it directly to your active script in RStudio, and one to copy the code to a new script. To close the app, press the ‘Escape’ key.

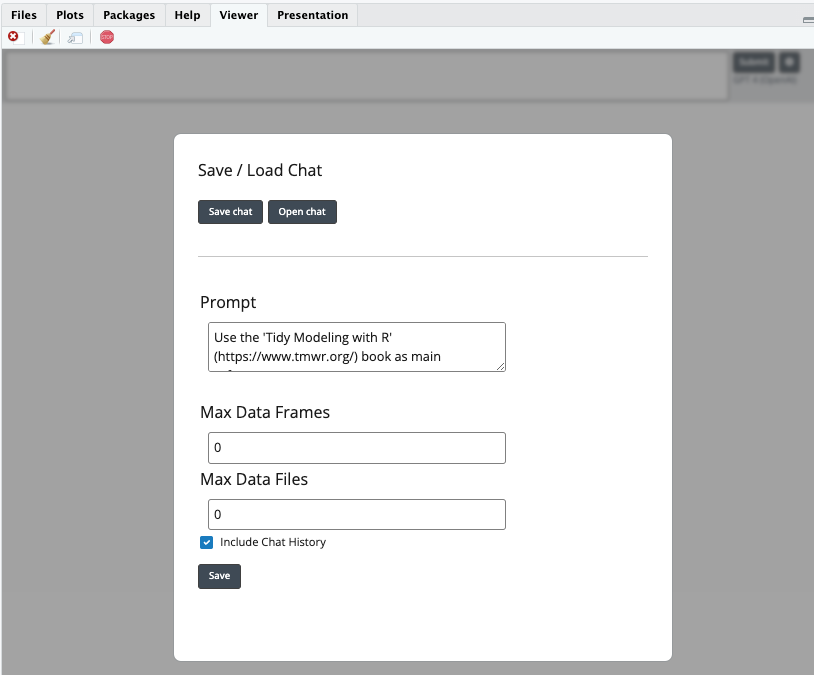

Pressing the ‘Settings’ button will open the defaults that the chat session is using. These can be changed as you see fit. The ‘Prompt’ text box is the additional text being sent to the LLM as part of your question.

chattr’s UI - Settings page — `chattr`’s UI - Settings page

Personalized setup#

chattr will try and identify which models you have setup, and will include only those in the selection menu. For Copilot and OpenAI, chattr confirms that there is an available authentication token in order to display them in the menu. For example, if you have only have OpenAI setup, then the prompt will look something like this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


chattr::chattr_app()
#> ── chattr - Available models
#> Select the number of the model you would like to use:
#>
#> 2: OpenAI - Chat Completions - gpt-3.5-turbo (gpt35)
#>
#> 3: OpenAI - Chat Completions - gpt-4 (gpt4)
#>
#> Selection:
>

If you wish to avoid the menu, use the chattr_use() function. Here is an example of setting GPT 4 as the default:

1
2
3


library(chattr)
chattr_use("gpt4")
chattr_app()

You can also select a model by setting the CHATTR_USE environment variable.

Advanced customization#

It is possible to customize many aspects of your interaction with the LLM. To do this, use the chattr_defaults() function. This function displays and sets the additional prompt sent to the LLM, the model to be used, determines if the history of the chat is to be sent to the LLM, and model specific arguments.

For example, you may wish to change the maximum number of tokens used per response, for OpenAI you can use this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


# Default for max_tokens is 1,000
library(chattr)
chattr_use("gpt4")
chattr_defaults(model_arguments = list("max_tokens" = 100))
#>
#> ── chattr ──────────────────────────────────────────────────────────────────────
#>
#> ── Defaults for: Default ──
#>
#> ── Prompt:
#> • {{readLines(system.file('prompt/base.txt', package = 'chattr'))}}
#>
#> ── Model
#> • Provider: OpenAI - Chat Completions
#> • Path/URL: https://api.openai.com/v1/chat/completions
#> • Model: gpt-4
#> • Label: GPT 4 (OpenAI)
#>
#> ── Model Arguments:
#> • max_tokens: 100
#> • temperature: 0.01
#> • stream: TRUE
#>
#> ── Context:
#> Max Data Files: 0
#> Max Data Frames: 0
#> ✔ Chat History
#> ✖ Document contents

If you wish to persist your changes to the defaults, use the chattr_defaults_save() function. This will create a yaml file, named ‘chattr.yml’ by default. If found, chattr will use this file to load all of the defaults, including the selected model.

A more extensive description of this feature is available in the chattr website under Modify prompt enhancements

Beyond the app#

In addition to the Shiny app, chattr offers a couple of other ways to interact with the LLM:

Use the chattr() function
Highlight a question in your script, and use it as your prompt

1
2
3


> chattr("how do I remove the legend from a ggplot?")
#> You can remove the legend from a ggplot by adding
#> `theme(legend.position = "none")` to your ggplot code.

A more detailed article is available in chattr website here .

RStudio Add-ins#

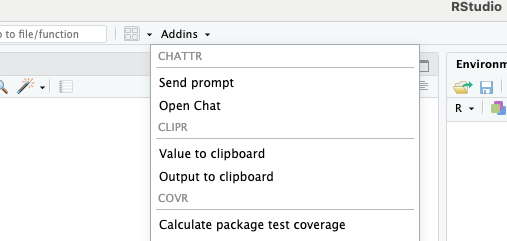

chattr comes with two RStudio add-ins:

Send prompt - It will submit the highlighted question from your script to the LLM
Open Chat - It will open the chattr app as a Shiny gadget

You can bind these add-in calls to keyboard shortcuts, making it easy to open the app without having to write the command every time. To learn how to do that, see the Keyboard Shortcut section in the chattr official website.

Works with local LLMs#

Open-source, trained models, that are able to run in your laptop are widely available today. Instead of integrating with each model individually, chattr works with LlamaGPTJ-chat. This is a lightweight application that communicates with a variety of local models. At this time, LlamaGPTJ-chat integrates with the following families of models:

GPT-J (ggml and gpt4all models)
LLaMA (ggml Vicuna models from Meta)
Mosaic Pretrained Transformers (MPT)

LlamaGPTJ-chat works right off the terminal. chattr integrates with the application by starting an ‘hidden’ terminal session. There it initializes the selected model, and makes it available to start chatting with it.

To get started, you need to install LlamaGPTJ-chat, and download a compatible model. More detailed instructions are found here .

chattr looks for the location of the LlamaGPTJ-chat, and the installed model in a specific folder location in your machine. If your installation paths do not match the locations expected by chattr, then the LlamaGPT will not show up in the menu. But that is OK, you can still access it with chattr_use():

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


library(chattr)
chattr_use(
  "llamagpt",
  path = "[path to compiled program]",
  model = "[path to model]"
  )
#>
#> ── chattr
#> • Provider: LlamaGPT
#> • Path/URL: [path to compiled program]
#> • Model: [path to model]
#> • Label: GPT4ALL 1.3 (LlamaGPT)

Extending `chattr`#

chattr aims to make it easy for new LLM APIs to be added. chattr has two components, the user-interface (Shiny app and chattr() function), and the included back-ends (GPT, Copilot, LLamaGPT). New back-ends do not need to be added directly in chattr. If you are a package developer and would like to take advantage of the chattr UI, all you need to do is define ch_submit() method in your package.

The two output requirements for ch_submit() are:

As the final return value, send the full response from the model you are integrating into chattr.
If streaming (stream is TRUE), output the current output as it is occurring. Generally through a cat() function call.

Here is a simple toy example that shows how to create a custom method for chattr:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35


library(chattr)
ch_submit.ch_my_llm <- function(defaults,
                                prompt = NULL,
                                stream = NULL,
                                prompt_build = TRUE,
                                preview = FALSE,
                                ...) {
  # Use `prompt_build` to prepend the prompt
  if(prompt_build) prompt <- paste0("Use the tidyverse\n", prompt)
  # If `preview` is true, return the resulting prompt back
  if(preview) return(prompt)
  llm_response <- paste0("You said this: \n", prompt)
  if(stream) {
    cat(">> Streaming:\n")
    for(i in seq_len(nchar(llm_response))) {
      # If `stream` is true, make sure to `cat()` the current output
      cat(substr(llm_response, i, i))
      Sys.sleep(0.1)
    }
  }
  # Make sure to return the entire output from the LLM at the end
  llm_response
}

chattr_defaults("console", provider = "my llm")
#>
chattr("hello")
#> >> Streaming:
#> You said this:
#> Use the tidyverse
#> hello
chattr("I can use it right from RStudio", prompt_build = FALSE)
#> >> Streaming:
#> You said this:
#> I can use it right from RStudio
