Today, we’re happy to feature a guest post written by Turgut Abdullayev, showing how to use BERT from R. Turgut is a data scientist at AccessBank Azerbaijan. Currently, he is pursuing a Ph.D. in economics at Baku State University, Azerbaijan.

In the previous post, Sigrid Keydana explained the logic behind the reticulate package and how it enables interoperability between Python and R. So, this time we will build a classification model with BERT , taking into account one of the powerful capabilities of the reticulate package – calling Python from R via importing Python modules.

Before we start, make sure that the Python version used is 3, as Python 2 can introduce lots of difficulties while working with BERT, such as Unicode issues related to the input text.

Note: The R implementation presupposes TF Keras while by default, keras-bert does not use it. So, adding that environment variable makes it work.

1
2
3
4
5
6

Sys.setenv(TF_KERAS=1)
# make sure we use python 3
reticulate::use_python('C:/Users/turgut.abdullayev/AppData/Local/Continuum/anaconda3/python.exe',
                       required=T)
# to see python version
reticulate::py_config()

1
2
3
4
5
6
7
8
9

python:         C:/Users/turgut.abdullayev/AppData/Local/Continuum/anaconda3/python.exe
libpython:      C:/Users/turgut.abdullayev/AppData/Local/Continuum/anaconda3/python37.dll
pythonhome:     C:\Users\TURGUT~1.ABD\AppData\Local\CONTIN~1\ANACON~1
version:        3.7.3 (default, Mar 27 2019, 17:13:21) [MSC v.1915 64 bit (AMD64)]
Architecture:   64bit
numpy:          C:\Users\TURGUT~1.ABD\AppData\Local\CONTIN~1\ANACON~1\lib\site-packages\numpy
numpy_version:  1.16.4

NOTE: Python version was forced by use_python function

Luckily for us, a convenient way of importing BERT with Keras was created by Zhao HG. It is called Keras-bert . For us, this means that importing that same python library with reticulate will allow us to build a popular state-of-the-art model within R.

There are several methods to install keras-bert in Python.

  • in Jupyter Notebook, run:
1

!pip install keras-bert
  • in Terminal (Linux, Mac OS), run:
1

python3 -m pip install keras-bert
  • in Anaconda prompt (Windows), run:
1

conda install keras-bert

After this procedure, you can check whether keras-bert is installed or not.

1

reticulate::py_module_available('keras_bert')

1

[1] TRUE

Finally, the TensorFlow version used should be 1.14/1.15. You can check it in the following form:

1

tensorflow::tf_version()

1

[1] ‘1.14’

In a nutshell:

1
2

pip install keras-bert
tensorflow::install_tensorflow(version = "1.15")

What is BERT?#

BERT1 is a pre-trained deep learning model introduced by Google AI Research which has been trained on Wikipedia and BooksCorpus. It has a unique way to understand the structure of a given text. Instead of reading the text from left to right or from right to left, BERT, using an attention mechanism which is called Transformer encoder2, reads the entire word sequences at once. So, it allows to understanding a word based on its surroundings. There are different kind of pre-trained BERT models but the main difference between them is trained parameters. In our case, BERT with 12 encoder layers (Transformer Blocks), 768-hidden hidden units, 12-heads3, and 110M parameters will be used to create a text classification model.

Model structure#

Loading a pre-trained BERT model is straightforward. The downloaded zip file contains:

  • bert_model.ckpt, which is for loading the weights from the TensorFlow checkpoint
  • bert_config.json, which is a configuration file
  • vocab.txt, which is for text tokenization
1
2
3
4

pretrained_path = '/Users/turgutabdullayev/Downloads/uncased_L-12_H-768_A-12'
config_path = file.path(pretrained_path, 'bert_config.json')
checkpoint_path = file.path(pretrained_path, 'bert_model.ckpt')
vocab_path = file.path(pretrained_path, 'vocab.txt')

Import Keras-Bert module via reticulate#

Let’s load keras-bert via reticulate and prepare a tokenizer object. The BERT tokenizer will help us to turn words into indices.

1
2
3
4

library(reticulate)
k_bert = import('keras_bert')
token_dict = k_bert$load_vocabulary(vocab_path)
tokenizer = k_bert$Tokenizer(token_dict)

How does the tokenizer work?#

BERT uses a WordPiece tokenization strategy. If a word is Out-of-vocabulary (OOV), then BERT will break it down into subwords. (eating => eat, ##ing).

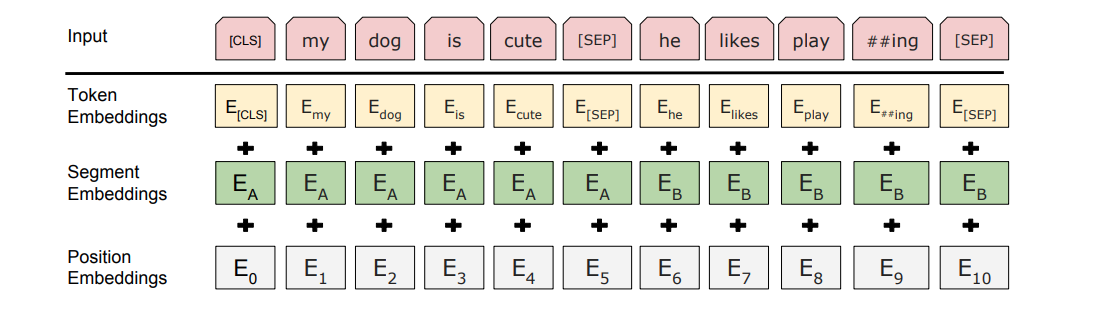

BERT input representation. The input embeddings are the sum of the token embeddings, the segmentation embeddings, and the position embeddings

Embedding Layers in BERT#

There are 3 types of embedding layers in BERT:

  • Token Embeddings help to transform words into vector representations. In our model dimension size is 768.
  • Segment Embeddings help to understand the semantic similarity of different pieces of the text.
  • Position Embeddings mean that identical words at different positions will not have the same output representation.

Define model parameters and column names#

As usual with keras, the batch size, number of epochs and the learning rate should be defined for training BERT. Additionally, the sequence length is needed.

1
2
3
4
5
6
7

seq_length = 50L
bch_size = 70
epochs = 1
learning_rate = 1e-4

DATA_COLUMN = 'comment_text'
LABEL_COLUMN = 'target'

Note: the max input length is 512, and the model is extremely compute intensive even on GPU.

Load BERT model into R#

We can load the BERT model and automatically pad sequences with seq_len function. Keras-bert4 makes the loading process very easy and comfortable.

1
2
3
4
5
6

model = k_bert$load_trained_model_from_checkpoint(
  config_path,
  checkpoint_path,
  training=T,
  trainable=T,
  seq_len=seq_length)

Data structure, reading, preparation#

The dataset for this post is taken from the Kaggle Jigsaw Unintended Bias in Toxicity Classification competition .

In order to prepare the dataset, we write a preprocessing function which will read and tokenize data simultaneously. Then, we feed the outputs of the function as input for BERT model.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

# tokenize text
tokenize_fun = function(dataset) {
  c(indices, target, segments) %<-% list(list(),list(),list())
  for ( i in 1:nrow(dataset)) {
    c(indices_tok, segments_tok) %<-% tokenizer$encode(dataset[[DATA_COLUMN]][i],
                                                       max_len=seq_length)
    indices = indices %>% append(list(as.matrix(indices_tok)))
    target = target %>% append(dataset[[LABEL_COLUMN]][i])
    segments = segments %>% append(list(as.matrix(segments_tok)))
  }
  return(list(indices,segments, target))
}

1
2
3
4
5
6

# read data
dt_data = function(dir, rows_to_read){
  data = data.table::fread(dir, nrows=rows_to_read)
  c(x_train, x_segment, y_train) %<-% tokenize_fun(data)
  return(list(x_train, x_segment, y_train))
}

Load dataset#

The way we have written the preprocess function, at first, it will read data, then add zeros and encode words into indices. Hence, we will have 3 output files:

  • x_train is input matrix for BERT
  • x_segment contains zeros for segment embeddings
  • y_train is the output target which we should predict
1
2

c(x_train,x_segment, y_train) %<-%
dt_data('~/Downloads/jigsaw-unintended-bias-in-toxicity-classification/train.csv',2000)

Matrix format for Keras-Bert#

The input data are in list format. They need to be extracted and transposed. Then, the train and segment matrices should be placed into the list.

1
2
3
4
5

train = do.call(cbind,x_train) %>% t()
segments = do.call(cbind,x_segment) %>% t()
targets = do.call(cbind,y_train) %>% t()

concat = c(list(train ),list(segments))

Calculate decay and warmup steps#

Using the Adam optimizer with warmup helps to lower the learning rate at the beginning of the training process. After certain training steps, the learning rate will gradually be increased, because learning new data without warmup can negatively affect a BERT model.

1
2
3
4
5

c(decay_steps, warmup_steps) %<-% k_bert$calc_train_steps(
  targets %>% length(),
  batch_size=bch_size,
  epochs=epochs
)

Determine inputs and outputs, then concatenate them#

In order to build a binary classification model, the output of the BERT model should contain 1 unit. Therefore, first of all, we should get input and output layers. Then, adding an additional dense layer to the output can perfectly meet our needs.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

library(keras)

input_1 = get_layer(model,name = 'Input-Token')$input
input_2 = get_layer(model,name = 'Input-Segment')$input
inputs = list(input_1,input_2)

dense = get_layer(model,name = 'NSP-Dense')$output

outputs = dense %>% layer_dense(units=1L, activation='sigmoid',
                         kernel_initializer=initializer_truncated_normal(stddev = 0.02),
                         name = 'output')

model = keras_model(inputs = inputs,outputs = outputs)

This is how the model architecture looks like after adding a dense layer and padding input sequences.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247

Model
__________________________________________________________________________________________
Layer (type)                 Output Shape        Param #    Connected to
==========================================================================================
Input-Token (InputLayer)     (None, 50)          0
__________________________________________________________________________________________
Input-Segment (InputLayer)   (None, 50)          0
__________________________________________________________________________________________
Embedding-Token (TokenEmbedd [(None, 50, 768), ( 23440896   Input-Token[0][0]
__________________________________________________________________________________________
Embedding-Segment (Embedding (None, 50, 768)     1536       Input-Segment[0][0]
__________________________________________________________________________________________
Embedding-Token-Segment (Add (None, 50, 768)     0          Embedding-Token[0][0]
                                                            Embedding-Segment[0][0]
__________________________________________________________________________________________
Embedding-Position (Position (None, 50, 768)     38400      Embedding-Token-Segment[0][0]
__________________________________________________________________________________________
Embedding-Dropout (Dropout)  (None, 50, 768)     0          Embedding-Position[0][0]
__________________________________________________________________________________________
Embedding-Norm (LayerNormali (None, 50, 768)     1536       Embedding-Dropout[0][0]
__________________________________________________________________________________________
Encoder-1-MultiHeadSelfAtten (None, 50, 768)     2362368    Embedding-Norm[0][0]
__________________________________________________________________________________________
Encoder-1-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-1-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-1-MultiHeadSelfAtten (None, 50, 768)     0          Embedding-Norm[0][0]
                                                            Encoder-1-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-1-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-1-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-1-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-1-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-1-FeedForward-Dropou (None, 50, 768)     0          Encoder-1-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-1-FeedForward-Add (A (None, 50, 768)     0          Encoder-1-MultiHeadSelfAttenti
                                                            Encoder-1-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-1-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-1-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-2-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-1-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-2-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-2-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-2-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-1-FeedForward-Norm[0][
                                                            Encoder-2-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-2-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-2-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-2-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-2-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-2-FeedForward-Dropou (None, 50, 768)     0          Encoder-2-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-2-FeedForward-Add (A (None, 50, 768)     0          Encoder-2-MultiHeadSelfAttenti
                                                            Encoder-2-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-2-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-2-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-3-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-2-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-3-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-3-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-3-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-2-FeedForward-Norm[0][
                                                            Encoder-3-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-3-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-3-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-3-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-3-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-3-FeedForward-Dropou (None, 50, 768)     0          Encoder-3-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-3-FeedForward-Add (A (None, 50, 768)     0          Encoder-3-MultiHeadSelfAttenti
                                                            Encoder-3-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-3-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-3-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-4-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-3-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-4-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-4-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-4-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-3-FeedForward-Norm[0][
                                                            Encoder-4-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-4-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-4-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-4-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-4-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-4-FeedForward-Dropou (None, 50, 768)     0          Encoder-4-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-4-FeedForward-Add (A (None, 50, 768)     0          Encoder-4-MultiHeadSelfAttenti
                                                            Encoder-4-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-4-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-4-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-5-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-4-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-5-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-5-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-5-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-4-FeedForward-Norm[0][
                                                            Encoder-5-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-5-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-5-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-5-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-5-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-5-FeedForward-Dropou (None, 50, 768)     0          Encoder-5-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-5-FeedForward-Add (A (None, 50, 768)     0          Encoder-5-MultiHeadSelfAttenti
                                                            Encoder-5-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-5-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-5-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-6-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-5-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-6-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-6-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-6-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-5-FeedForward-Norm[0][
                                                            Encoder-6-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-6-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-6-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-6-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-6-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-6-FeedForward-Dropou (None, 50, 768)     0          Encoder-6-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-6-FeedForward-Add (A (None, 50, 768)     0          Encoder-6-MultiHeadSelfAttenti
                                                            Encoder-6-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-6-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-6-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-7-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-6-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-7-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-7-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-7-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-6-FeedForward-Norm[0][
                                                            Encoder-7-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-7-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-7-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-7-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-7-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-7-FeedForward-Dropou (None, 50, 768)     0          Encoder-7-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-7-FeedForward-Add (A (None, 50, 768)     0          Encoder-7-MultiHeadSelfAttenti
                                                            Encoder-7-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-7-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-7-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-8-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-7-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-8-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-8-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-8-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-7-FeedForward-Norm[0][
                                                            Encoder-8-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-8-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-8-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-8-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-8-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-8-FeedForward-Dropou (None, 50, 768)     0          Encoder-8-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-8-FeedForward-Add (A (None, 50, 768)     0          Encoder-8-MultiHeadSelfAttenti
                                                            Encoder-8-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-8-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-8-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-9-MultiHeadSelfAtten (None, 50, 768)     2362368    Encoder-8-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-9-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-9-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-9-MultiHeadSelfAtten (None, 50, 768)     0          Encoder-8-FeedForward-Norm[0][
                                                            Encoder-9-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-9-MultiHeadSelfAtten (None, 50, 768)     1536       Encoder-9-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-9-FeedForward (FeedF (None, 50, 768)     4722432    Encoder-9-MultiHeadSelfAttenti
__________________________________________________________________________________________
Encoder-9-FeedForward-Dropou (None, 50, 768)     0          Encoder-9-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-9-FeedForward-Add (A (None, 50, 768)     0          Encoder-9-MultiHeadSelfAttenti
                                                            Encoder-9-FeedForward-Dropout[
__________________________________________________________________________________________
Encoder-9-FeedForward-Norm ( (None, 50, 768)     1536       Encoder-9-FeedForward-Add[0][0
__________________________________________________________________________________________
Encoder-10-MultiHeadSelfAtte (None, 50, 768)     2362368    Encoder-9-FeedForward-Norm[0][
__________________________________________________________________________________________
Encoder-10-MultiHeadSelfAtte (None, 50, 768)     0          Encoder-10-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-10-MultiHeadSelfAtte (None, 50, 768)     0          Encoder-9-FeedForward-Norm[0][
                                                            Encoder-10-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-10-MultiHeadSelfAtte (None, 50, 768)     1536       Encoder-10-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-10-FeedForward (Feed (None, 50, 768)     4722432    Encoder-10-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-10-FeedForward-Dropo (None, 50, 768)     0          Encoder-10-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-10-FeedForward-Add ( (None, 50, 768)     0          Encoder-10-MultiHeadSelfAttent
                                                            Encoder-10-FeedForward-Dropout
__________________________________________________________________________________________
Encoder-10-FeedForward-Norm  (None, 50, 768)     1536       Encoder-10-FeedForward-Add[0][
__________________________________________________________________________________________
Encoder-11-MultiHeadSelfAtte (None, 50, 768)     2362368    Encoder-10-FeedForward-Norm[0]
__________________________________________________________________________________________
Encoder-11-MultiHeadSelfAtte (None, 50, 768)     0          Encoder-11-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-11-MultiHeadSelfAtte (None, 50, 768)     0          Encoder-10-FeedForward-Norm[0]
                                                            Encoder-11-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-11-MultiHeadSelfAtte (None, 50, 768)     1536       Encoder-11-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-11-FeedForward (Feed (None, 50, 768)     4722432    Encoder-11-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-11-FeedForward-Dropo (None, 50, 768)     0          Encoder-11-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-11-FeedForward-Add ( (None, 50, 768)     0          Encoder-11-MultiHeadSelfAttent
                                                            Encoder-11-FeedForward-Dropout
__________________________________________________________________________________________
Encoder-11-FeedForward-Norm  (None, 50, 768)     1536       Encoder-11-FeedForward-Add[0][
__________________________________________________________________________________________
Encoder-12-MultiHeadSelfAtte (None, 50, 768)     2362368    Encoder-11-FeedForward-Norm[0]
__________________________________________________________________________________________
Encoder-12-MultiHeadSelfAtte (None, 50, 768)     0          Encoder-12-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-12-MultiHeadSelfAtte (None, 50, 768)     0          Encoder-11-FeedForward-Norm[0]
                                                            Encoder-12-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-12-MultiHeadSelfAtte (None, 50, 768)     1536       Encoder-12-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-12-FeedForward (Feed (None, 50, 768)     4722432    Encoder-12-MultiHeadSelfAttent
__________________________________________________________________________________________
Encoder-12-FeedForward-Dropo (None, 50, 768)     0          Encoder-12-FeedForward[0][0]
__________________________________________________________________________________________
Encoder-12-FeedForward-Add ( (None, 50, 768)     0          Encoder-12-MultiHeadSelfAttent
                                                            Encoder-12-FeedForward-Dropout
__________________________________________________________________________________________
Encoder-12-FeedForward-Norm  (None, 50, 768)     1536       Encoder-12-FeedForward-Add[0][
__________________________________________________________________________________________
Extract (Extract)            (None, 768)         0          Encoder-12-FeedForward-Norm[0]
__________________________________________________________________________________________
NSP-Dense (Dense)            (None, 768)         590592     Extract[0][0]
__________________________________________________________________________________________
output (Dense)               (None, 1)           769        NSP-Dense[0][0]
==========================================================================================
Total params: 109,128,193
Trainable params: 109,128,193
Non-trainable params: 0
__________________________________________________________________________________________

Compile model and begin training#

Aus usual with Keras, before training a model, we need to compile the model. And using fit(), we feed it the R arrays.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

model %>% compile(
  k_bert$AdamWarmup(decay_steps=decay_steps,
                    warmup_steps=warmup_steps, lr=learning_rate),
  loss = 'binary_crossentropy',
  metrics = 'accuracy'
)

model %>% fit(
  concat,
  targets,
  epochs=epochs,
  batch_size=bch_size, validation_split=0.2)

Conclusion#

In this post, we’ve shown how we can use Keras to conveniently load, configure, and train a BERT model.

  1. BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding  ↩︎

  2. Attention Is All You Need  ↩︎

  3. Attention — focuses on salient parts of input by taking a weighted average of them. 768 hidden units divided by 12 chunks and each chunk will have 64 output dimensions, afterward, the result from each chunk will be concatenated and forwarded to the next layer ↩︎

  4. Implementation of the BERT. Official pre-trained models could be loaded for feature extraction and prediction  ↩︎
